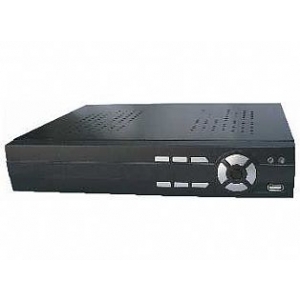

Product Name:4CH Triplex DVR
Moudel Number:UVR-404
Feature:
●Real-Time Full D1 Resolution Display
●Recording at 60/50 FPS (NTSC/PAL)
●File Backup Thru DVD-RW, USB Flash or Internet
●1CH Synchronised Audio Recording & Playback
●Build-in Multi Language OSD
●Programmable Motion Detection Setting for Each CH
●MPEG IV Internet Connection Thru Static IP, DDNS or PPPoE
●Easy Software Upgrade Thru USB
☆Optional 3G Mobile Remote Monitoring
☆Optional Build-in RS232 Port for the integration with POS, ATM Access Control System
☆Central Managment Software with E-mapping Function
Model No.
|
UVR-404
|
No. of Channel
|
4
|
Input
|
4CH Inputs 1.0Vp-p, 75ohm unbalanced (BNC Type)
|
Output
|
BNC x2 (Main monitor x1, Call monitor x1) / S-Video x1 / VGA x1 (Optional)
|
Horizontal Resolution
|
720X480 (NTSC) / 720X576 (PAL)
|
S/N Ratio
|
More than 40dB
|
Color
|
16.7 Million
|
Split Screen
|
1 or 4
|
Zoom
|
Live & PB Available, 2x2 zoom
|
Sequence
|
Available
|
Screen Quality
|
Full: 720(H)x 480(V) Active Pixels (NTSC)
720(H) x 576(V) Active Pixels (PAL)
|
1/4 Screen: 360(H) x 240(V) Active Pixels (NTSC)
360(H) x 288(V) Active Pixels(PAL)
|
|
Display Rate
|
120 frames per second (16x30)
|
Recording
|
|
Recording (Max) NTSC
|
1/30(1/30), 1/15(1/15), 1/10(1/10), 1/5 (1/5), 1/3 (1/3), 1/2 (1/2), 1(1), 2(2), 3(3.13), 5(5), 10 (8.33), 15(12.5), 30(25), 60(50), 120(100).
|
Record Quality
|
Super / High / Fine / Normal / Low
|
Compressed Picture
|
M-JPEG for Local and MPEG4 for Remote
|
REC. Mode
|
Normal / Schedule / Motion detect / Alarm
|
Playback
|
|
Playback search mode
|
Event search / Time search
|
Playback speed
|
Pause / x1 / x16
|
Multi-channel Playback
|
1 or 4
|
Sensor / Motion
|
|
Operation Mode
|
Triplex
|
Motion Detect
|
Area division: 16 x12, ON/OFF sector selectable. Motion detect recording and relay on at the same time
|
Network Function (RJ45)
|
Remote Viewer Thru Fixed IP, Dynamic IP (DDNC) or PPPOE
|
Alarm
|
Max. 16 Alarm Input / 1 relay Output
|
Serial Connector
|
|
Audio Connector
|
RCA x1 / RCA x1
|
USB
|
USB 2.0 x1, USB Mouse (Combo USB & PS2) x1
|
Video Backup
|
|
Back-Up
|
USB / Network / CD-RW / DVD-RW (Optional)
|
PTZ Control
|
Multi-protocol
|
RS485
|
For Keyboard Control / P/T/Z Dome
|
Storage
|
IDE or SATA(max. 1 tera byte option);
|
Mechanical
|
|
IR Remote Controller
|
Standard
|
Power Supply
|
DC 12V / 5A
|
Weight
|
N.W./ G.W.: 6.2kg / 9.1kg
|
Dimension
|
440 (W) x 412 (D) x 88 (H)mm
|
Operating Temperature
|
41 ºF~104 ºF (5 ºC~+40 ºC)
|
Operating Humidity
|
Less than 90%
|
