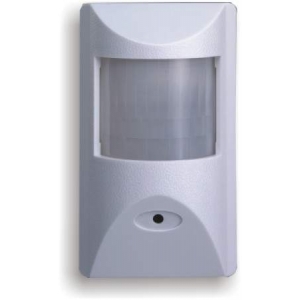

Product Name:High Resolution Hidden CCD camera (Optional with PIR sensor)

Moudel Number:UOH-45 (470TVL)


●Color camera with SONY 1/3" CCD sensor in PIR hidden case.
●Employs Digital Signal Processor (DSP) chip-set for image control.
●Pixel number : NTSC=380K / PAL= 440K (High Resolution).
●High sensitivity, low smear, high anti-blooming, and high S/N ratio.
●Build-in functions: Auto Electronic Shutter (AES), Auto Gain Control (AGC), Auto White Balance (AWB).
●Furnished with DC power cable and video cable.
●Built-in anti-aliasing and IR-cut optical filter.

 Model Type
 Image Pick-up Device
SHARP 1/3" CCD High Resolution
 Effective Picture Elements
NTSC:768*494,PAL: 752*582(H*V)
Horizontal Resolution
470 TV lines
Minimum Illumination
0.5LUX @ F3.5
S/N Ratio
More than 48 dB
Auto Electronic Shutter
NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s
Gamma Characteristic
Lens Furnished
Pinhole lens 3.7mm / F3.5
Gain Control
White Balance
Automatically (2500K~9500K)
Synchronous System
Negative sync. Internal
Video Output
1 Vp-p Composite Video / 75 Ohms.
Power Supply
DC 12V / 130 mA
DC 12V / 160 mA
 Operating Temp.
-10 to 50 (14 to 122)
Audio Output (Option)
2 Vp-p / 50 Ohms. RCA connector.
Built-in PIR Sensor (Option)
 PIR Detection Angle
Horizontal = 100° / Vertical = 45°
 PIR Detection Range
10 M
 PIR N.C/N.O Relay Output
1A / 120VAC, 2A / 30VDC
PIR N.C/N.O Alarm Time
Adjustable from 2 to 50 sec..
