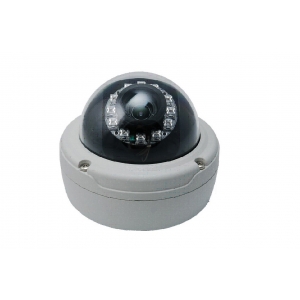

Product Name：1/3" SONY HQ1 CCD camera with Weatherproof & Vari-Focal Lens
Moudel Number：UOD-625HQ1 (540TVL)
Feature：
●1/3" SONY Super HAD CCD image sensor
●3.7~12mm vari-focal auto iris lens
●Max. 10 pounds sledgehammer impact durability
●Water resistance IP66 protection
●Wide range viewing 3D covert bracket design
●Easy installation with attached cap
●Anti-scratch cover coating
SPECIFICATIONS
|
Pick-up Device
|
1/3” SONY HQ1 CCD
|
|
Picture Elements
|
PAL: 795 x 596; NTSC: 811 x 508
|
|
Horizontal Resolution
|
540 TV Lines (HQ1 DSP)
|
|
Synchronous System
|
Internal / Line-Lock Auto Detect
|
|
Power Consumption
|
500mA (DC12V)
|
|
Min. Illumination
|
0 Lux / IR
|
|
IR Wavelength
|
700~1100nm (built in 850nm)
|
|
OLPF Switching
|
Auto
|
|
S/N Ratio
|
More Than 50dB
|
|
Gain Control
|
ON/OFF Switch-able
|
|
Lens Furnished
|
3.7~12mm / F1.6 Vari-Focal DC Drive Auto Iris Lens
|
|
White Balance
|
Auto
|
|
Gamma Correction
|
0.45
|
|
B.L. Compensation
|
ON/OFF Switch-able
|
|
Housing Material
|
Metal
|
|
Video Output
|
1.0 Vp-p Composite Video, 75Ω
|
|
Vandal-proof
|
10 Pounds of Sledgehammer Durability
|
|
Water Resistance
|
IP66
|
|
Power Supply
|
DC 12V / AC 24V Dual Power
|
|
Operating Temperature
|
-10°C ~ 50°C (14℉ ~ 122℉)
|
Design and specifications are subject to change without notice
