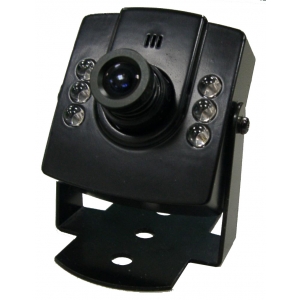

Product Name:1/3" Sharp CCD Mini Case camera with IR

Moudel Number:UOS-41IR


●Color camera in metal case with SHARP 1/3" CCD sensor
●Employs Digital Signal Processor (DSP) chip-set for image control
●Pixel number : NTSC=270K / PAL=320K
●High sensitivity, low smear, high anti-blooming, and high S/N ratio
●Build-in functions: Auto Electronic Shutter (AES), Auto Gain Control (AGC),
Auto White Balance(AWB)
●Small size (48x45) and furnished with DC power cable and video cable
●Built-in IR-LED  6 for low light environments
●Built-in anti-aliasing and IR-pass(850nm) optical filter

 Image Pick-up Device
SHARP 1/3" Color CCD
 Effective Picture Elements
NTSC: 510*492, PAL: 500*582 (H*V)
Horizontal Resolution
420 TV lines
Minimum Illumination
0.1 LUX @ F2.0 / 0LUX @ IR
S/N Ratio
More than 48 dB
Auto Electronic Shutter
NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s
Gamma Characteristic
Lens Furnished
Board lens 3.6mm / F2.0
Gain Control
White Balance
Automatically (2500K~9500K)
Synchronous System
Negative sync. Internal
Video Output
1 Vp-p Composite Video / 75 Ohms.
Power Supply
DC 12V / 140 mA
 Operating Temp.
-10 to 50 (14 to 122)

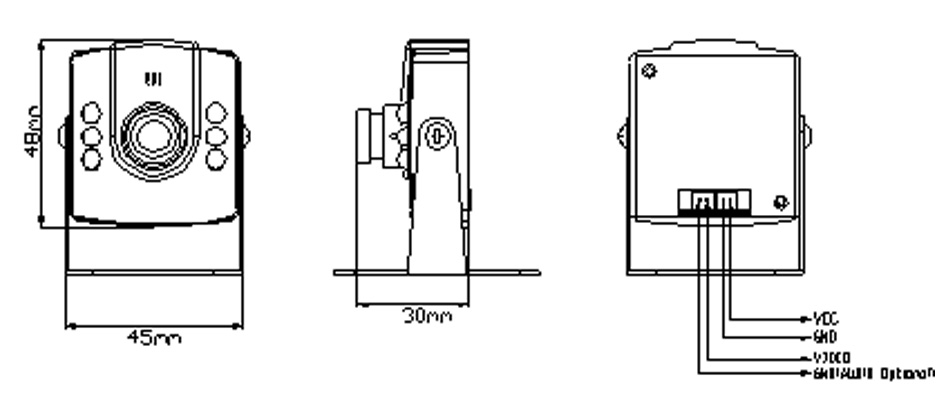

48 mm(L) *45 mm(W) * 30 mm(H)
