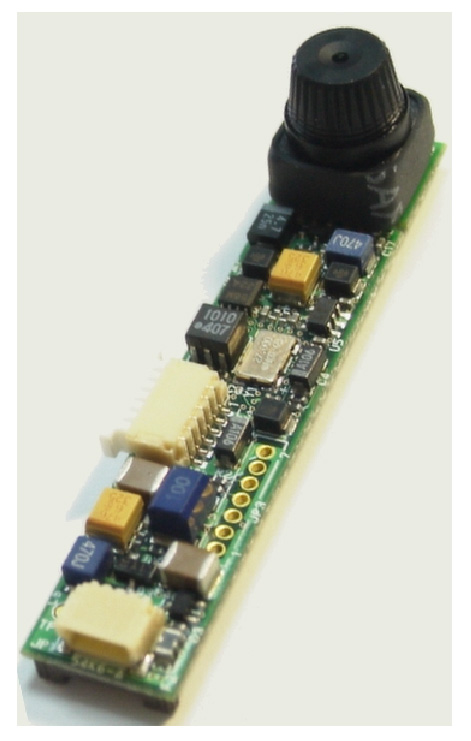

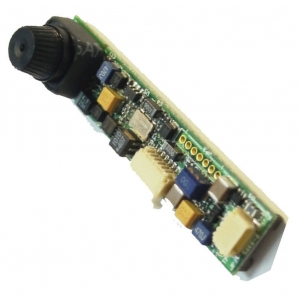

Product Name：Unique design with long size PCB
Moudel Number：UOT-9700
Feature：
●Special design with long size PCB
●Medical professional
●Color camera PCB Module with SONY 1/4" CCD sensor
●Employs Digital Signal Processor (DSP) chip-set for image control.
●Pixel number : NTSC=270K / PAL=320K
●High sensitivity, low smear, high anti-blooming, and high S/N ratio
●Build-in functions: Auto Electronic Shutter (AES),
●Auto Gain Control (AGC), Auto White Balance (AWB)
●Small size (55x11.5) and furnished with DC power wire and video wire
●Built-in anti-aliasing and IR-cut optical filter
◎SPECIFICATION
|
MODEL NO.
|
UOT-9700
|
|
|
TV SYSTEM
|
NTSC
|
PAL
|
|
IMAGE SENSOR
|
1/4-inch SONY CCD Image Sensor
|
|
|
CCD TOTAL PIXELS
|
542 (H) x 496 (V)
|
542 (H) x 586(V)
|
|
SCANNING SYSTEM
|
525 lines, 60 fields/sec
|
625 lines, 50 fields/sec
|
|
SYNC SYSTEM
|
Internal
|
|
|
MINIMUM ILLUMINATION
|
0.4 Lux @ F1.2 AGC on
|
|
|
LENS & VIEW ANGLE
|
3.7mm F2.0
|
|
|
RESOLUTION
|
400TVL / 470 TVL (Enhanced)
|
|
|
S / N RATIO
|
52dB (MIN) / 60dB (TYP) (AGC OFF)
|
|
|
WHITE BALANCE
|
ATW / AWC (Zero color rolling)
|
|
|
WHITE BALANCE RANGE
|
AWC，ATW ( 3200---10000 ºK )
|
|
|
AUTO IRIS
|
A.E.S.
|
|
|
ELECTRONIC SHUTTER
|
1/60~1/120,000 sec.
|
1/50~1/120,000 sec.
|
|
VIDEO OUTPUT
|
1.0V p-p composite video at 75 ohm
|
|
|
DIGITAL VIDEO OUTPUT
|
ITU656 Format (8Bit)
|
|
|
MIRROR FUNCTION
|
---
|
|
|
ENHNCE
|
High / Mid. Switchable
|
|
|
GAMMA CORRECTION
|
---
|
|
|
CROSS LINE
|
---
|
|
|
OPERATION TEMPERATURE
|
-20℃ TO 50℃
|
|
|
OPERATIONAL HUMIDITY
|
within 85﹪RH
|
|
|
POWER SUPPLY
|
DC12V / 100mA
|
|
＊The specifications and appearance of the product may changed without notice.
Dimension: Unit (mm) / (±0.5mm)
.jpg)
.jpg)
IN Assignment
|
JP1
|
JP3
|
JP4
|
|||
|
P1
|
+12V
|
P1
|
ATW/AWC
|
P1~P8
|
Y0~Y7
|
|
P2
|
GND
|
P2
|
NC.
|
P9
|
FCS
|
|
P3
|
VIDEO
|
P3
|
NC.
|
P10
|
GND
|
|
P4
|
GND
|
P4
|
EHANCH
|
|
|
|
|
P5
|
NC.
|
|||
|
P6
|
NC.
|
||||
|
P7
|
GND
|
||||
