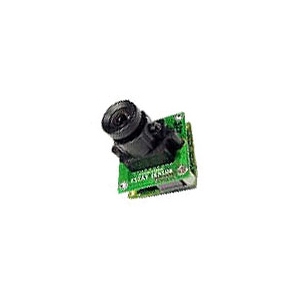

Product Name：1/3" SONY CCD
Moudel Number：UOM-3350 (520TVL)
Feature：
●Color camera PCB Module with SONY 1/3“ CCD sensor
●Employs Digital Signal Processor (DSP) chip-set for image control
●Pixel number : NTSC=410K / PAL=470K
●High sensitivity, low smear, high anti-blooming, and high S/N ratio
●Build-in functions: Auto Electronic Shutter (AES),
●Auto Gain Control (AGC), Auto White Balance (AWB)
●Mini size (30x30mm) and furnished with DC power wire and
video wire
●Built-in anti-aliasing and IR-cut optical filter
◎SPECIFICATION
|
MODE NO.
|
UOM-3350
|
||
|
TV SYSTEM
|
NTSC
|
PAL
|
|
|
IMAGE SENSOR
|
1/3-inch SONY CCD Image Sensor
|
||
|
CCD TOTAL PIXELS
|
811(H) x 508(V)
|
795(H) x 596(V)
|
|
|
SCANNING SYSTEM
|
525 lines, 60 fields/sec
|
625 lines, 50 fields/sec
|
|
|
SYNC SYSTEM
|
Internal
|
||
|
MINIMUM ILLUMINATION
|
0.4 Lux @F1.2 AGC on
|
||
|
LENS & VIEW ANGLE
|
3.6mm F2.0 / 92°
|
||
|
RESOLUTION
|
520 TVL / 580 TVL (Enhanced)
|
||
|
S / N RATIO TYPICAL ( MAX )
|
52dB (MIN) / 60dB (TYP) (AGC OFF)
|
||
|
WHITE BALANCE
|
MODE
|
ATW / AWB ( Zero color rolling)
|
|
|
RANGE
|
3200---10000 ºK ( 2200 –15000 ºK With S Filter )
|
||
|
MIRROR FUNCTION
|
ON / OFF
|
||
|
B.L.C. FUNCTION
|
ON / OFF
|
||
|
ZOOM FUNCTION
|
ON / OFF
|
||
|
AUTO IRIS
|
A.E.S. / VIDEO-IRIS
|
||
|
ELECTRONIC SHUTTER (A.E.S.)
|
1/60~1/120,000 sec.
|
1/50~1/120,000 sec.
|
|
|
VIDEO OUTPUT
|
1.0V p-p composite video at 75 ohm
|
||
|
GAMMA CORRECTION
|
0.45
|
||
|
GAIN CONTROL
|
AGC ON / OFF
|
||
|
OPERATION TEMPERATURE
|
-20℃ TO 50℃
|
||
|
OPERATIONAL HUMIDITY
|
within 85﹪RH
|
||
|
POWER SUPPLY
|
DC12V±1V / 150mA
|
||

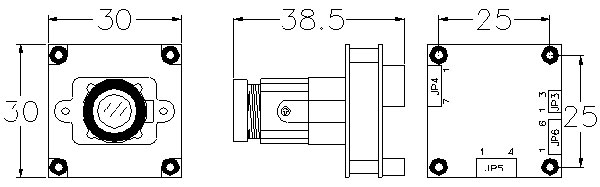

Dimension: Unit (mm)
(1).jpg)
PIN Assignment
|
JP3
|
JP4
|
JP5
|
JP6
|
||||
|
1
|
+9V
|
1
|
AI / AE
|
1
|
+12V
|
1
|
+3V3
|
|
2
|
IRIS-SIG
|
2
|
AGC ON / OFF
|
2
|
GND
|
2
|
SDO
|
|
3
|
GND
|
3
|
BLC ON / OFF
|
3
|
VIDE0
|
3
|
SDI
|
|
|
4
|
ZOOM ON / OFF
|
4
|
GND
|
4
|
STB
|
|
|
5
|
MIRROR
|
|
5
|
SCK
|
|||
|
6
|
ATW / AWB
|
6
|
GND
|
||||
|
7
|
GND
|
|
|||||
