Product Name:1/3" SONY CCD

Moudel Number:UOM-52 (380TVL)

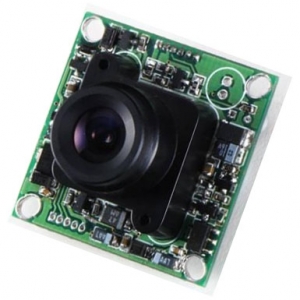

●Color camera PCB Module with SONY 1/3“ CCD sensor
●Employs Digital Signal Processor (DSP) chip-set for image control
●Pixel number : NTSC=270K / PAL=320K
●High sensitivity, low smear, high anti-blooming, and high S/N ratio
●Build-in functions: Auto Electronic Shutter (AES), Auto Gain Control (AGC),
Auto White Balance (AWB)
●Small size (32x32mm) and furnished with DC power wire and video wire

 Image Pick-up Device
SONY 1/3“ Color CCD
 Effective Picture Elements
NTSC: 510*492, PAL: 500*582 (H*V)
Horizontal Resolution
380 TV lines
Minimum Illumination
0.1LUX @ F2.0
S/N Ratio
More than 48 dB
Auto Electronic Shutter
NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s
Gamma Characteristic
Gain Control
White Balance
Automatically (2500K~9500K)
Synchronous System
Negative sync. Internal
Video Output
1 Vp-p Composite Video / 75 Ohms.
Power Supply
DC 12V / 80 mA
 Operating Temp.
-10 to 50℃ (14℉ to 122℉)

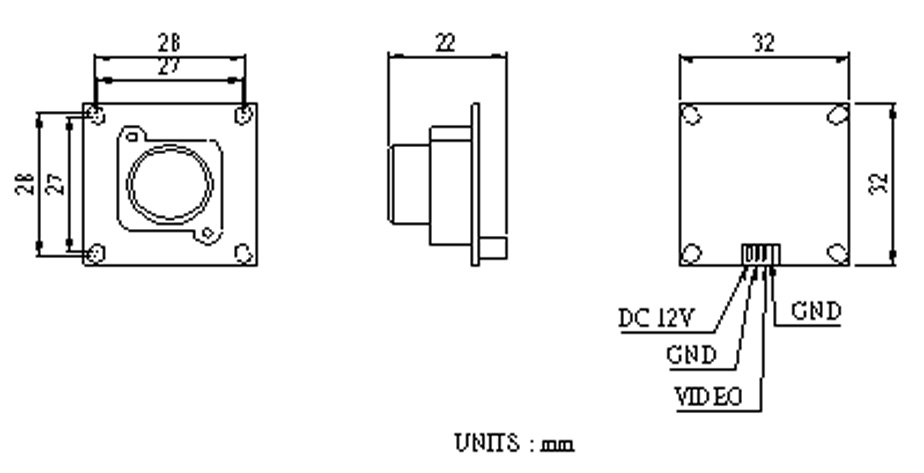

32 mm(L) *32 mm(W) * 27 mm(H)
