Product Name：1/4" SONY CCD
Moudel Number：UOM-63 (400TVL)
Feature：

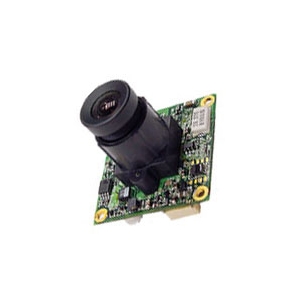

●Color camera PCB Module with SONY 1/4“ CCD sensor
●Employs Digital Signal Processor (DSP) chip-set for image control
●Pixel number : NTSC=270K / PAL=320K
●High sensitivity, low smear, high anti-blooming, and high S/N ratio
●Build-in functions: Auto Electronic Shutter (AES),
●Auto Gain Control (AGC),
Auto White Balance (AWB)

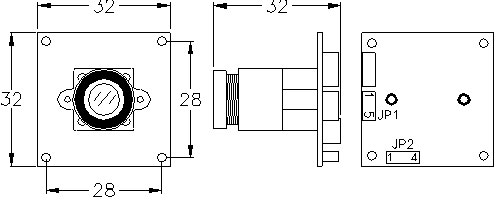

●Small size (32x32mm) and furnished with DC power wire and
video wire
●Built-in anti-aliasing and IR-cut optical filter
◎SPECIFICATION
|
MODE NO.
|
UOM-63
|
|
|
TV SYSTEM
|
NTSC
|
PAL
|
|
IMAGE SENSOR
|
1/4-inch SONY CCD Image Sensor
|
|
|
CCD TOTAL PIXELS
|
542 (H) x 496 (V)
|
542 (H) x 586(V)
|
|
SCANNING SYSTEM
|
525 lines, 60 fields/sec
|
625 lines, 50 fields/sec
|
|
SYNC SYSTEM
|
Internal
|
|
|
MINIMUM ILLUMINATION
|
0.3 Lux @ F1.2 AGC on
|
|
|
LENS & VIEW ANGLE
|
3.6 mm F2.0 / 69°
|
|
|
RESOLUTION
|
400 TVL / 470 TVL (Enhanced)
|
|
|
S / N RATIO
|
52dB (MIN) / 60dB (TYP) (AGC OFF)
|
|
|
WHITE BALANCE
|
ATW / AWB / FIX
|
|
|
WHITE BALANCE RANGE
|
AWB，ATW ( 3200---10000 ºK ) / FIX( 3200 ºK )
|
|
|
AUTO IRIS
|
A.E.S.
|
|
|
ELECTRONIC SHUTTER
|
1/60~1/120,000 sec.
|
1/50~1/120,000 sec.
|
|
VIDEO OUTPUT
|
1.0V p-p composite video at 75 ohm
|
|
|
GAMMA CORRECTION
|
0.45
|
|
|
MIRROR FUNCTION
|
Optional
|
|
|
DIGITAL ZOOM
|
Optional
|
|
|
GAIN CONTROL
|
AGC
|
|
|
OPERATION TEMPERATURE
|
-20℃ TO 50℃
|
|
|
OPERATIONAL HUMIDITY
|
within 85﹪RH
|
|
|
POWER SUPPLY
|
DC12V / 80mA
|
|
(1).jpg)
(1).jpg)
PIN Assignment
|
JP2
|
JP1
|
|||
|
P1
|
(RED) +12V
|
P1
|
ATW / FIX
|
P1~P4
CONNECTOR
TO P5 FUNCTION IS ACTIVE
|
|
P2
|
(BLACK) GN
|
P2
|
ATW / AWB
|
|
|
P3
|
(WHITE) VIDEO
|
P3
|
MIRROR
|
|
|
P4
|
(BLACK) GND
|
P4
|
ZOOM
|
|
|
|
|
P5
|
GND
|
|
