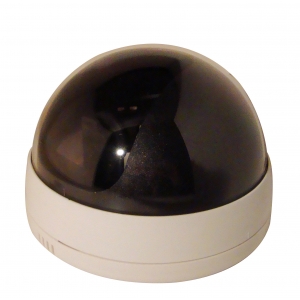

Product Name：Super Wide Dynamic OSD CCD camera with 540TVL
Moudel Number：UOD-5135VF (540TVL)
Feature：
●Super Wide Dynamic
●OSD (On Screen Display) Function
●Color dome camera with SONY 1/3“ CCD sensor
●Employs Digital Signal Processor (DSP) chip-set for image control
●Pixel number : NTSC=410K / PAL=470K
●High sensitivity, low smear, high anti-blooming and high S/N ratio
●Build-in functions: 5 push SW, language (Eng, Jan, SC), mirror, upside down, digital zoom, negative image, masking area, DNR (Digital Noise Reduction), motion det., ICR (IR-Cut removable), wide dynamic, gamma correction
●Furnished with DC power cable and video cable
●Built-in anti-aliasing and IR-cut optical filter
◎SPECIFICATION
|
MODEL NO.
|
UOC-5135VF
|
||
|
TV SYSTEM
|
NTSC
|
PAL
|
|
|
IMAGE SENSOR
|
1/3-inch SONY CCD Image Sensor
|
||
|
CCD TOTAL PIXELS
|
811(H) X 508(V)
|
795(H) X 596(V)
|
|
|
SCANNING SYSTEM
|
525 lines, 60 fields/sec
|
625 lines, 50 fields/sec
|
|
|
SYNC SYSTEM
|
Internal
|
||
|
MINIMUM ILLUMINATION
|
0.001 Lux @ F1.2 AGC on B/W
|
||
|
LENS &
VIEW ANGLE
|
3.6~9.0mm / F1.6~2.4 (VF-LENS With IR-filter Switcher)
|
||
|
W: 99.44° X 77.18° X 56.73° / T: 39.60° X 31.66° X 23.73°
|
|||
|
RESOLUTION
|
540 TVL
|
||
|
WHITE BALANCE
|
Mode
|
ATW / AWB / FIX
|
|
|
Range
|
3200 ~ 10000 ºK
|
||
|
GAIN CONTROL
|
Mode
|
AGC (ON / OFF)
|
|
|
Range
|
0 ~ 18dB
|
||
|
S / N RATIO
|
52dB ( MIN) / 60dB ( TYP ) (AGC OFF)
|
||
|
AUTO IRIS
|
A.E.S. / DC
|
||
|
OSD DISPLAY
|
ON SCREEN DISPLAY FOR ALL CONTROL
|
||
|
5 PUSH SW
|
FOR OSD CONTROL PANEL
|
||
|
LANGUAGE (ENG. /JAN. / SC)
|
SELECTABLE BY OSD MANUAL
|
||
|
MIRROR FUNCTION
|
SELECTABLE BY OSD MANUAL
|
||
|
UP SIDE DOWN
|
SELECTABLE BY OSD MANUAL
|
||
|
B.L.C. FUNCTION
|
SELECTABLE BY OSD MANUAL
|
||
|
DIGITAL ZOOM (X2)
|
SELECTABLE BY OSD MANUAL
|
||
|
NEGATIVE IMAGE
|
SELECTABLE BY OSD MANUAL
|
||
|
MASKING AREA
|
SELECTABLE BY OSD MANUAL
|
||
|
DNR (Digital Noise Reduction)
|
SELECTABLE BY OSD MANUAL
|
||
|
MOTION DET.
|
SELECTABLE BY OSD MANUAL
|
||
|
ICR (IR-CUT REMOVABLE)
|
AUTO / MANU (SELECTABLE BY OSD MANUAL)
|
||
|
WIDE DYNAMIC
|
52dB ( MAX)
|
||
|
VIDEO OUTPUT
|
Composite 1.0V p-p at 75 ohm
|
||
|
GAMMA CORRECTION
|
0.45 / 1.0 (SELECTABLE BY OSD MANUAL)
|
||
|
OPERATION TEMPERATURE
|
-20℃ TO 50℃
|
||
|
OPERATIONAL HUMIDITY
|
within 85﹪RH
|
||
|
POWER SUPPLY
|
DC12V/180mA
|
||

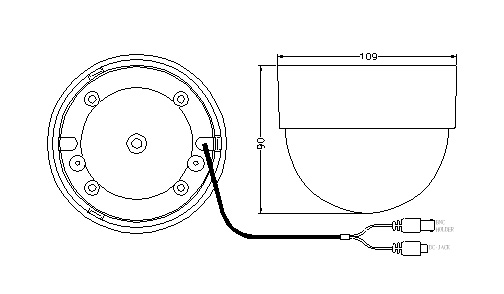

Dimension (Unit : mm/±0.5mm)
