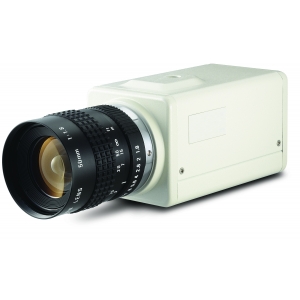

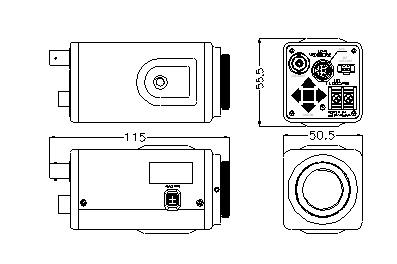

Product Name：OSD CCD camera (RS-485)
Moudel Number：UOC-7635-5 (540TVL) - RS-485
Feature：
●OSD (On Screen Display) function
●SENS UP technology increase sensibility to 2X-128X
●Color camera PCB Module with SHARP 1/3“ CCD sensor
●Employs Digital Signal Processor (DSP) chip-set for image control
●Pixel number : NTSC=410K / PAL=470K
●High sensitivity, low smear, high anti-blooming, and high S/N ratio
●Build-in functions: mirror function, enhance, flickless, color bar,
●IR-Cut-Filter SW, gamma correction, day/night SW, title,
●mask, digital zoom, negative image, picture freeze, alarm out,
●RS-485 I/F, high light suppress, ICR (IR-Cut removable)
●Built-in anti-aliasing and IR-cut optical filter
◎SPECIFICATION
|
MODEL NO.
|
UOC-7635-5
|
||
|
TV SYSTEM
|
NTSC
|
PAL
|
|
|
IMAGE SENSOR
|
1/3-inch SONY CCD Image Sensor
|
||
|
CCD TOTAL PIXELS
|
~ 410K
|
~ 470K
|
|
|
SCANNING SYSTEM
|
525 lines, 60 fields/sec
|
625 lines, 50 fields/sec
|
|
|
SYNC SYSTEM
|
Internal / Line-Lock
|
||
|
MINIMUM ILLUMINATION
|
0.005@F1.2 /20 IRE AGC on B/W
0.0003@F1.2 /20 IRE SENS-UP ON
|
||
|
RESOLUTION
|
540 TVL
|
||
|
WHITE BALANCE
|
Mode
|
ATW / AWC / FIX
|
|
|
Range
|
2500 ~ 12000 ºK
|
||
|
GAIN CONTROL
|
Mode
|
AGC (ON / OFF)
|
|
|
Range
|
0 ~ 18dB
|
||
|
S / N RATIO
|
52dB ( MIN) / 60dB ( TYP ) (AGC OFF)
|
||
|
ELECTRONIC SHUTTER
|
1/60~1/120,000 sec.
|
1/50~1/120,000 sec.
|
|
|
AUTO IRIS
|
A.E.S. / DC / Video
|
||
|
FLICKERLESS
|
SELECTABLE BY OSD MANUAL
|
||
|
MIRROR FUNCTION
|
SELECTABLE BY OSD MANUAL
|
||
|
B.L.C. FUNCTION
|
SELECTABLE BY OSD MANUAL
|
||
|
DIGITAL ZOOM (2X)
|
SELECTABLE BY OSD MANUAL
|
||
|
NEGATIVE IMAGE
|
SELECTABLE BY OSD MANUAL
|
||
|
MASKING AREA
|
SELECTABLE BY OSD MANUAL
|
||
|
AGC GAIN ADJUSTMENT
|
SELECTABLE BY OSD MANUAL
|
||
|
PICTURE FREEZE
|
ON/OFF & Ext.-Trigger
|
||
|
ALARM OUT
|
Motion Detect
|
||
|
RS-485 I/F (NO_ID)
|
MIN_DIN connector
|
||
|
PICTURE EHANCE
|
SELECTABLE BY OSD MANUAL
|
||
|
HIGH LIGHT SUPPRESS
|
SELECTABLE BY OSD MANUAL
|
||
|
COLOR BAR
|
ON / OFF (SELECTABLE BY OSD MANUAL)
|
||
|
ICR (IR-CUT REMOVEABLE)
|
AUTO / MANU
|
||
|
VIDEO OUTPUT
|
Composite 1.0V p-p at 75 ohm
|
||
|
GAMMA CORRECTION
|
0.45 / 1.0 (SELECTABLE BY OSD MANUAL)
|
||
|
OPERATION TEMPERATURE
|
-20℃ TO 50℃
|
||
|
OPERATIONAL HUMIDITY
|
within 85﹪RH
|
||
|
POWER SUPPLY
|
DC12V±1V or AC24V±10% / 6W
|
||
