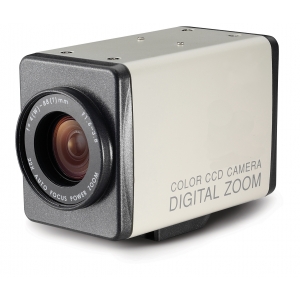

Product Name：260X Zoom CCD camera
Moudel Number：UOZ-26X-3 (520TVL)
Feature：
●Built-in SONY ICX-228/229 Super Sensitivity CCD
●260X Zoom (26 Optional; X 10 Digital = Total Zoom)
●OSD (ON Screen Display) Menu
●Multi-Language (Eng, Chi, Jan)
●RS-485 interface
●Super BLC and 48 zone BLC
●5 times longer life then all legacy motor zoom camera
●Long life motor for 500,000 times zoom focus iris exercise life
●AGC adjustable. 0, 3, 6, 9, 12, 18 dB
●RS-485 control TTL/CMOS level (3.3V, 0V) ( Optional +/- 12 V )
●Variable speed of zoom focus and iris
●Dry switch control for zoom focus and iris with VR for speed control
●Pelco compatible (+/-12V ~ +/-6V) speed control
◎
SPECIFICATION|
MODEL NO.
|
UOZ-26-3
|
||
|
TV SYSTEM
|
NTSC
|
PAL
|
|
|
IMAGE SENSOR
|
1/4-inch SONY CCD Image Sensor
|
||
|
CCD TOTAL PIXELS
|
~ 410K
|
~ 470K
|
|
|
SCANNING SYSTEM
|
525 lines, 60 fields/sec
|
625 lines, 50 fields/sec
|
|
|
SYNC SYSTEM
|
Internal
|
||
|
MINIMUM ILLUMINATION
|
0.05 Lux F1.6 AGC on B/W
|
||
|
RESOLUTION
|
520TVL
|
||
|
S / N RATIO
|
48dB ( MIN ) / 52dB ( TYP ) (AGC OFF，r=1，APC OFF，Y-OUT)
|
||
|
DNR (Digital Noise Reduce)
|
S/N UP 4.5dB
|
||
|
WHITE BALANCE
|
ATW / AWC / FIX
|
||
|
WHITE BALANCE RANGE
|
3200 ~ 9600 ºK
|
||
|
B.L.C. FUNCTION
|
Super BLC,48 zone BLC
|
||
|
GAMMA CORRECTION
|
0.45 /1
|
||
|
AGC
|
AUTO (24dB max)
|
||
|
ALC
|
AUTO / FIX
|
||
|
IMAGE NEGATIVE
|
Select by OSD menu
|
||
|
MONTION DETECT
|
48 zone (select by OSD)
|
||
|
FREEZE FUNCTION
|
Alarm in trigger or Select by OSD
|
||
|
CROSS LINE
|
ON/OFF Select by OSD menu (position adj. by software)
|
||
|
ELECTRONIC SHUTTER
|
AES : 1/60(1/50) ~ 1/120,000 sec. / MANUAL : 8 step
|
||
|
LENS
|
26X optical ZOOM LENS ,F1.6~3.8,f=3.5~91mm
|
||
|
Diagonal
|
W(57º 07’) / T(2º 24’)
|
||
|
Hor.
|
W(47º 05’) / T(1º 55’)
|
||
|
Ver.
|
W(36º 05’) / T(1º 26’)
|
||
|
ZOOM
|
260X (26X optical 10Xdigital)
|
||
|
FOCUS
|
Auto / Manual
|
||
|
POSITION
|
64 Position (Zoom，Focus)
|
||
|
VIDEO OUTPUT
|
Composite & Y/C output 1.0Vp-p at 75 ohm
|
||
|
CONTROL FUNCTION
|
OSD control ,Dry Switch , RS-485(Pelco)
|
||
|
OSD LANGUAGE SELECT
|
ENGLISH / CHINESS_Simp / JAPANESE
|
||
|
OPERATION TEMPERATURE
|
-10℃ TO 50℃
|
||
|
OPERATIONAL HUMIDITY
|
within 85﹪RH
|
||
|
POWER SUPPLY
|
DC12V±1V / 4W(Max)
|
||
|
DIMENSIONS
|
59mm(W) X 80mm(H) X 120mm (L)
|
||
(1).jpg)
CONNECTOR
(1).jpg)
PIN Assignment
|
P1
|
+12 POWER IN
|
P2
|
GND POWER
|
|
P3
|
Motion Out
|
P4
|
485+
|
|
P5
|
485-
|
P6
|
---
|
|
P7
|
Focus (+/-)
|
P8
|
Zoom(+/-)
|
|
P9
|
COM (Focus/Zoom)
|
P10
|
GND
|
