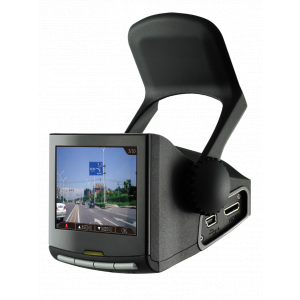

Product Name：Driving Recorder + GPS + G Sensor
Moudel Number：CS-P03
Feature：
●CS-P03 Driving Recorder allows you to record and playback of the video while driving, and to verify the responsibility if there’s any accident happened. Moreover, with GPS and G sensor built-in, shows you where the location is the accident happened and with clues from which direction of the hit occurred
●With 1080p GPS driving recorder, 2GB, 5V/ 1A, HDMI
●With high quality 1080p full HD recording
●With map display with your current location
●With junction / freeway exit information
●With speed camera warning/ speed limit display
●Auto recording while power on
●Emergency record button for important incident
●With 2.4” screen for instant video display
●Support 32GB external SD card
●With HDMI high quality video output
|
MODEL NO.
|
CS-P03
|
|
Main Chip
|
Ambrella A2S70
|
|
Image Sensor
|
5 mega-pixel CMOS(2592 x 1944) 1/2.5"
|
|
DRAM
|
128MB DDRII
|
|
Internal Memory
|
2GB MLC Flash RAM
|
|
External Memory
|
Single SDHC Card Slot (up to 32 GB)
|
|
LCD Display
|
2.4" LCD 480 x 234 Pixels
|
|
Power Supply
|
5V 1A USB Power (12~24V-->5V/1A Mini USB adapter)
|
|
Power Consumption
|
4.75V~5.25V/1A at maximum power output mode
|
|
White Balance
|
Auto
|
|
Exposure Control
|
Auto
|
|
Microphone
|
Yes
|
|
Date/Time(RTC)
|
Yes
|
|
Speaker
|
0.5W x 1
|
|
GPS + G Sensor
|
Yes
|
|
TV Out
|
HDMI 1.3
|
|
Interface
|
Mini USB 2.0 (Mass storage or power in) HDMI 1.3 (TV out)
SD Slot |
|
LED Indicator
|
1 LED light (2 color red/green: power on/ record)
|
|
Buttons
|
1 x Emergency Rec. Button
3 x Up/Down/OK Button(3 ways lever switch) 1 x Power Switch(slide switch) |
|
Operating Temperature
|
[0~70 °C]
|
|
Storage Temperature
|
[-20~80 °C]
|
|
Accessory
|
Mini USB Car Charger
USB Cable Bracket |
|
Certificate
|
ROHS / WEEE / BSMI / CE / FCC / CCC
|
|
View Angle
|
Wide angel lens FOV 107 Diagonal (TBD)
|
|
Lens
|
F/1.6 F=3.69mm (TBD)
|
|
|
|
|
Software
|
|
|
O/S
|
Linux kernel 2.6.32
|
|
Map Software
|
Feature: map display
Speed camera warning Speed limit display Junction info Speed high way exit info Current position display |
|
Video Recorder
|
PAPAGO! Driving Recorder
Special Feature: Circle recording 2 minutes emergency record |
|
LDWS
|
Lane Departure Warning
Forward Collision Warning |
|
Watchdog Timer
|
System monitoring by per second for auto reset if necessary
|
|
Video Format
|
MOV (AVC/H.264)
|
|
Video Resolution
|
Full HD 1080P (1920 x 1080)
|
|
Video Frame Rate
|
30 fps
|
