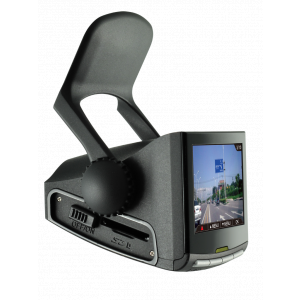

Product Name：Driving Recorder
Moudel Number：CS-P01
Feature：
●CS-P01 Driving Recorder allows you to record and playback of the video while driving, and to verify the responsibility if there’s any accident happened
●1080p driving recorder, 32 MB, 5V/ 1A, HDMI
●With high quality 1080p full HD video
●Auto recording while power on
●Emergency record button for important incident
●With 2.4” screen for instant video display
●Support 32GB external SD card
●With HDMI high quality video output
n SPECIFICATION
|
MODEL NO.
|
CS-P01
|
|
Main Chip
|
Ambrella A2S70
|
|
Image Sensor
|
5 mega-pixel OV5653
|
|
DRAM
|
64MB DDRII
|
|
Internal Memory
|
32MB Flash
|
|
External Memory
|
Single SDHC Card Slot (up to 32 GB)
|
|
LCD Display
|
2.4" LCD 480 x 234 Pixels
|
|
Power Supply
|
5V 1A USB Power (12~24V-->5V/1A Mini USB adapter)
|
|
Power Consumption
|
4.75V~5.25V/1A at maximum power output mode
|
|
White Balance
|
Auto
|
|
Exposure Control
|
Auto
|
|
Microphone
|
Yes
|
|
Date/Time(RTC)
|
Yes
|
|
Speaker
|
0.5W x 1
|
|
TV Out
|
HDMI 1.3
|
|
Interface
|
Mini USB 2.0(Mass storage or power in)
HDMI 1.3(TV out)
SD Slot
|
|
LED Indicator
|
1 LED light (2 color red/green: power on/ record)
|
|
Buttons
|
1 x Emergency Rec. Button
|
|
|
3x Up/Down/OK Button(3 ways lever switch)
|
|
|
1 x Power Switch(slide switch)
|
|
Operating Temperature
|
[0~70 °C]
|
|
Storage Temperature
|
[-20~80 °C]
|
|
Accessory
|
Mini USB Car Charger
USB Cable
Bracket
|
|
Certificate
|
ROHS / WEEE / BSMI / CE / FCC / CCC
|
|
View Angle
|
Wide angel lens FOV 107 Diagonal (TBD)
|
|
Lens
|
F/1.6 F=3.69mm (TBD)
|
＊The specifications and appearance of the product may changed without notice
