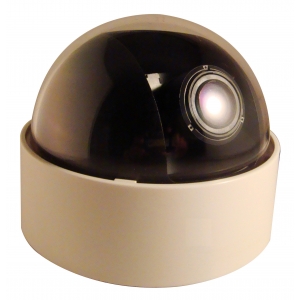

Product Name：WDR 3 Series - Dome Type CCD camera
Moudel Number：UWDR-3D-IRVF
Feature：
● Smear Free
● Excellent S/N (Great Sensitivity)
● High Gray-scale
● 30db Gain with 3D DNR
● Color Performance Under Low Illumination
● Full OSD (On Screen Display) function
● Video Output with Analog or Digital
● Option RS-485 I/F
● Build-in Vari-Focal Lens:
- 3~9mm / F1:1.2~2.1 (116.5~40.2)
- W: 99.44 x 77.18 x 56.73 / T: 39.60 x 31.66 x 23.73 Degree
n SPECIFICATION
|
Model No.
|
UWDR-3D-IRVF
|
||
|
TV SYSTEMS
|
NTSC
|
PAL
|
|
|
IMAGE SENSOR
|
1/3” CCD Image Sensor
|
||
|
CCD TOTAL PIXELS
|
811(H) X 508(V)
|
795(H) X 596(V)
|
|
|
SCANNING SYSTEM
|
525 Lines, 60 Field/Sec
|
625 Lines, 50 Field/Sec
|
|
|
SYNC SYSTEM
|
Internal
|
||
|
MINIMUM ILLUMINATION
|
0.001 Lux @ F1.2 AGC on B/W
|
||
|
LENS & VIEW ANGLE
|
3.6~9mm / F1.6~2.4 (VF Lens with IR Filter Switcher)
|
||
|
W: 99.44° X 77.18° X 56.73° / T: 39.60° X 31.66° X 23.73°
|
|||
|
RESOLUTION
|
540TVL
|
||
|
WHITE BALANCE
|
Mode
|
ATW / AWC / FIX
|
|
|
Range
|
3200 ~ 10000 ºK
|
||
|
S / N RATIO TYPICAL
|
52dB (MIN) / 60dB (TYP) (AGC OFF)
|
||
|
AUTO IRIS
|
A.E.S. / DC
|
||
|
OSD DISPLAY
|
On Screen Display For All Control
|
||
|
5 PUSH SW
|
For OSD Control Panel
|
||
|
LANGUAGE (ENG./JAN./SC.)
|
Select by OSD
|
||
|
MIRROR FUNCTION
|
Select by OSD
|
||
|
UP SIDE DOWN
|
Select by OSD
|
||
|
B.L.C. FUNCTION
|
Select by OSD
|
||
|
DIGITAL ZOOM (X2)
|
Select by OSD
|
||
|
NEGATIVE IMAGE
|
Select by OSD
|
||
|
MASKING AREA
|
Select by OSD
|
||
|
DNR (Digital Noise Reduction)
|
Select by OSD
|
||
|
MOTION DET.
|
Select by OSD
|
||
|
ICR (IR-CUT REMOVEABLE)
|
Autp / MANUAL (Select by OSD)
|
||
|
WIDE DYNAMIC
|
54dB (MAX)
|
||
|
VIDEO OUTPUT
|
1.0V p-p composite video at 75 ohm
|
||
|
OPERATION TEMPERATURE
|
-20℃ TO +50℃
|
||
|
OPERATIONAL HUMIDITY
|
within 85﹪RH
|
||
|
POWER SUPPLY
|
DC 12V / 180mA
|
||

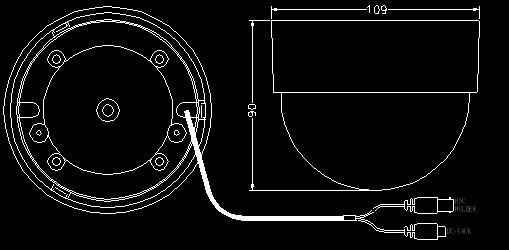

Dimension Unit (mm ±0.3mm)
 Dimension.JPG)
