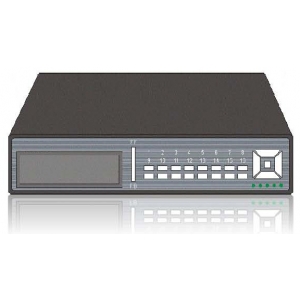

Product Name：H.264 Pentaplex Full Function DVR
Moudel Number：UVR-9016
Feature：
● Advanced H.264 Compression Deliver Great Image with Small File Size. It Save the HDD Space & make NetworkTransmission more Smooth
● Penplex Function allows Simutaneously Display, Recording, Playback, Backup & Remote Access
● PTZ Control - RS-485 Interface Control the Speed Dome Function with Multiple Protocol
● Fast Backup - During Playback, the DVR supports Fast Backup Function for the previous 3 minutes File to USB or DVD-RW
● Recording Rate up to 480 FPS(NTSC) / 400 FPS(PAL) at Simplex Mode
● Recording Rate up to 240 FPS(NTSC) / 200 FPS(PAL) at Pentaplex Mode
● On Board SATA HDD Interface Support up to 4 HDDs
● Pre-Alarm Recording save 150 Frame of each Channel in D1 Resolution while Alarm / Motion Triggered
● Network & CMS support the Remote View by IE or Provided AP. With Provided AP, 4 DVRs can be Viewed Simultaneously
● Up to 6CH Audio Recording in C. 723 Compression, Synchronize Perfectly with Video Recorded
● USB 2.0 Port support the Firmware Upgrade, Backup to USB HDD & Mouse for the Operation
|
Model No.
|
UVR-9016
|
|
|
No. of Channel
|
16
|
|
|
Input
|
16CH Inputs 1.0Vp-p, 75ohm unbalanced (BNC Type)
16CH Audio Input, (RCA Type)
|
|
|
Output
|
BNC x2 (Main monitor x 1, Call monitor x 1) / S-Video x 1 /
VGA x 1 (Max. 1024x768)
|
|
|
Horizontal Resolution
|
720x480 (NTSC) / 720x576 (PAL)
|
|
|
S/N Ratio
|
More than 40dB
|
|
|
Color
|
16.7 Million
|
|
|
Split Screen
|
1 / 4 / 8 / 13 / 16
|
|
|
Zoom
|
Live & PB Available, 2 x 2 zoom
|
|
|
Sequence
|
Available
|
|
|
Display Rate
|
480 frames per second (16x30)
|
|
|
Recording
|
||
|
Recording Rate (Max.)
|
240FPS / 200FPS (at Pentaplex Mode)
480FPS / 400FPS (at Simplex Mode)
|
|
|
Record Quality
|
Super / High / Fine / Normal
|
|
|
Compressed Picture
|
H.264 for Video, G.726 for Audio
|
|
|
Recording Quality
|
NTSC
|
480FPS / 240FPS (352x240), 60FPS (720x480)
|
|
PAL
|
400FPS / 200FPS (352x288), 50FPS (720x576)
|
|
|
Pre-alarm Rec.
|
Available, Up to 150FPS
|
|
|
REC. Mode
|
Continuous / Schedule / Motion detect / Alarm
|
|
|
Playback
|
||
|
Playback search mode
|
Event search / Time search
|
|
|
Playback speed
|
Fast Forward: x1 / x2 / x4 / x8 / x16,
Fast Backward: x1 / x2 / x4 / x8 / x16 |
|
|
Multi-channel Playback
|
1 / 4 / 8 / 13 / 16
|
|
|
Sensor / Motion
|
||
|
Operation Mode
|
Pentaplex: Monitoring, Recording, Playback, Backup and Remote
|
|
|
Motion Detect
|
Area division: 16x12, ON/OFF sector selectable
Motion detect recording and relay on at the same time |
|
|
Network Function (RJ45)
|
Remote Viewer Thru TCP/IP, UDP, HTTP, SMTP, NTP, DHCP, DDNS
|
|
|
Network Operation
|
w/ AP: Monitoring, Remote Setting, PTZ Control, Backup and Playback
w/ IE: Viewer, Event Notification, Multi-user Access,
Two-way audio, CMS |
|
|
Alarm
|
Max. 16 Alarm Input / 4 relay Output
|
|
|
Serial Connector
|
||
|
Audio Connector
|
Input: RCA x16; Output: RCA x1
|
|
|
USB
|
USB 2.0 x2 (For System upgrade, system log file)
Support USB FLASH and USB HDD |
|
|
Video Backup
|
||
|
Back-Up
|
USB 2.0 / Network / DVD-RW
|
|
|
PTZ Control
|
Multi-protocol
|
|
|
RS485
|
P/T/Z Dome
|
|
|
Storage
|
SATA HDD x 4 (Max.)
|
|
|
Mechanical
|
||
|
Power Supply
|
DC 12V / 8A
|
|
|
Weight
|
G.W. 7.5Kg
|
|
|
Dimension
|
430 (W) x 370 (D) x 95 (H)mm
|
|
|
Operating Temperature
|
40 ºF~104 ºF (5 ºC~+40 ºC)
|
|
|
Operating Humidity
|
Less than 80%
|
|
