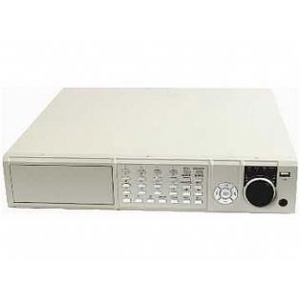

Product Name:8CH / 16CH Triplex DVR

Moudel Number:UVR-7000MJ Series

Feature:

●Advanced Compression Delivers Real-time Displaying at Outstanding Picture Resolution
●Programmable Recording and Playing setting of Each CH Individually
●Recording and playback quality up to (NTSC: 720X480) (PAL: 720X576)
●Triplex Allow Display, Record, Playback, Remote View Simultaneously
●One Channel Audio Recording and Playback Support
●Programmable Motion Detection Setting of Each Channel
●Remote View Software Allow you to Monitoring, Back-up, Playback and Control the DVR with Authorized Password
●High Speed Searching by Time, Date or Event
●Multi-channel View and Play on Local and Remote End
●Build-in CD-RW (Optional) and USB Port for Easy File Export and Backup
●Easy Software Upgrade thru USB
●IR Remote Controller and Optional Control Keyboard Provide more Controlling Option

☆Advance Remote View Software Enable the User to Manage up to 10 DVRs thru LAN / WAN
☆Up to 10 DVRs can be Controlled thru Single Control Keyboard
☆RTOS and Watch Dog Function Ensure the Stability of UVR-7000MJ Series



Model No.
UVR-7008
UVR-7016
No. of Channel
8
16
Input
8Ch Inputs 1.0Vp-p, 75ohm
unbalanced (BNC Type)
8Ch Audio Input, (RCA Type)
16Ch Inputs 1.0Vp-p, 75ohm
unbalanced (BNC Type)
16Ch Audio Input, (RCA Type)
Output
BNC x2 (Main monitor x1, Call monitor x1) / S-Video x1 / VGA x1
(Max. 1024x768)
Horizontal Resolution
720x480 (NTSC) / 720x576 (PAL)
S/N Ratio
More than 40dB
Color
16.7 Million
Split Screen
1 / 4 / 8
1 / 4 / 8 / 13 / 16
Zoom
Live & PB Available, 2x2 zoom
Sequence
Available
Display Rate
240 frames per second

(8x30)
480 frames per second

(16x30)
Recording
Recording Rate(Max.)
240FPS
480FPS
Record Quality
Super / High / Fine / Normal / Low
Compressed Picture
MPEG IV for Video, G.726 for Audio
Recording Quality
NTSC
240FPS (352X240)
 60FPS (720X480)
480FPS (352X240) 120FPS (720X480)
PAL
240FPS (352X288)
 50FPS (720X576)
400FPS (352X288) 100FPS (720X576)
Pre-alarm Rec.
Available
REC. Mode
Continuous / Schedule / Motion detect / Alarm
Playback
Playback search mode
Event search / Time search
Playback speed
 Fast Forward: x1 / x2 / x4 / x8 / x16,
Fast Backward: x1 / x2 / x4 / x8 / x16
Multi-channel Playback
1 / 4 / 8
1 / 4 / 8 / 13 / 16
Sensor / Motion
Operation Mode
Pentaplex: Monitoring, Recording, Playback, Backup and Remote
Motion Detect
Area division: 16 x12, ON/OFF sector selectable.

Motion detect recording and relay on at the same time
Network Function (RJ45)
Remote Viewer Thru TCP/IP, UDP, HTTP, SMTP, NTP, DHCP, DDNS
Network Operation
w/ AP: Monitoring, Remote Setting, PTZ Control,

Backup and Playback
   w/ IE: Viewer, Event Notification, Multi-user Access,
Two way audio, CMS and E-MAP
Alarm
Max. 16 Alarm Input / 4 relay Output
Serial Connector
Audio Connector
Input: RCA x16; Output: RCA x1
USB
USB 2.0 x2 (For System upgrade, system log file)
Support USB FLASH and USB HDD
Video Backup
Back-Up
USB 2.0 / Network / CD-RW / DVD-RW (Optional)
PTZ Control
Multi-protocol
RS485
 P/T/Z Dome
Storage
IDE HDD X4 (Max.)
Mechanical
Power Supply
DC 12V / 6.7A
Weight
G.W.7.5Kg
Dimension
430 (W) x 370 (D) x 90 (H)mm
Operating Temperature
40 ºF~104 ºF (5 ºC~+40 ºC)
Operating Humidity
Less than 80%
