Product Name：Unique design SONY CCD camera
Moudel Number：UOI-9500
Feature：

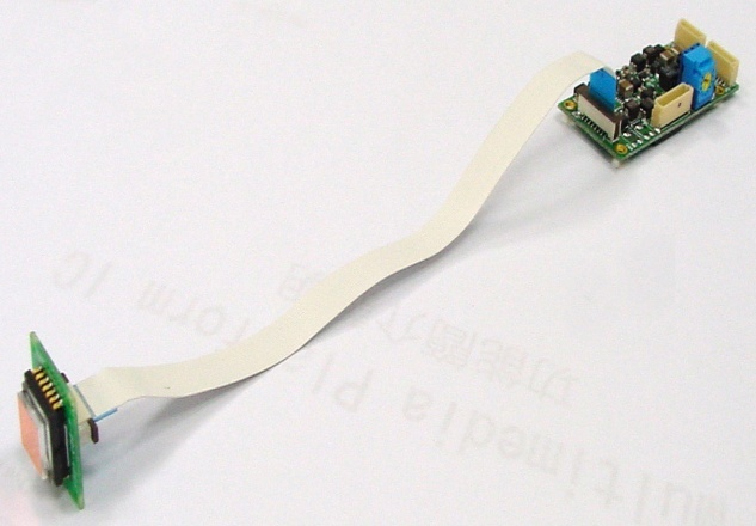

●Unique separate design CCD sensor and PCB
●Color camera PCB Module with 1/4" SONY CCD sensor
●Employs Digital Signal Processor (DSP) chip-set for image control.
●Pixel number : NTSC=270K / PAL=320K
●High sensitivity, low smear, high anti-blooming, and high S/N ratio
●Build-in functions: Auto Electronic Shutter (AES),
●Auto Gain Control (AGC), Auto White Balance (AWB)
●Optional furnished DC power wire and video wire
●Built-in anti-aliasing and IR-cut optical filter
◎SPECIFICATION
|
MODE NO.
|
UOI-9500
|
|
|
TV SYSTEM
|
NTSC
|
PAL
|
|
IMAGE SENSOR
|
1/4” SONY CCD Image Sensor
|
|
|
CCD TOTAL PIXELS
|
Approx. 410K
|
Approx. 470K
|
|
SCANNING SYSTEM
|
525 lines, 60 fields/sec
|
625 lines, 50 fields/sec
|
|
SYNC SYSTEM
|
Internal
|
|
|
MINIMUM ILLUMINATION
|
1.5Lux @ F1.2 AGC on
|
|
|
LENS & VIEW ANGLE
|
|
|
|
RESOLUTION
|
470TVL / 580 TVL (Enhanced)
|
|
|
S / N RATIO
|
52dB ( MIN ) / 60dB ( TYP ) (AGC OFF)
|
|
|
WHITE BALANCE
|
Auto high speed White Balance
|
|
|
WHITE BALANCE RANGE
|
3200---10000 ºK
|
|
|
AUTO IRIS
|
A.E.S.
|
|
|
ELECTRONIC SHUTTER
|
1/60~1/120,000 sec.
|
1/50~1/120,000 sec.
|
|
1/60,1/100(1/120),1/250,1/500,1/1000,1/2000,1/4000,1/10000.(sec)
|
||
|
BLC
|
ON / OFF
|
|
|
VIDEO OUTPUT
|
1.0V p-p composite video at 75 ohm & Y/C output
|
|
|
GAMMA CORRECTION
|
0.45 /1.0
|
|
|
MIRROR FUNCTION
|
ON/OFF
|
|
|
GAIN CONTROL
|
AGC
|
|
|
OPERATION TEMPERATURE
|
-20℃ TO 50℃
|
|
|
OPERATIONAL HUMIDITY
|
within 85﹪RH
|
|
|
POWER SUPPLY
|
DC12V ±10% / 100mA
|
|
＊The specifications and appearance of the product may changed without notice.

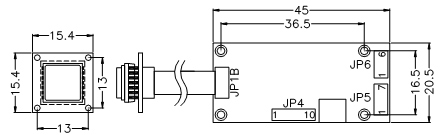

Dimension: Unit (mm)
.jpg)
.jpg)
PIN Assignment
|
JP4
|
JP5
|
JP6
|
JP1B
|
||
|
P1
|
SHT1
|
P1
|
+12V
|
For manufacture
not release
|
Connector
To
CCD Board
|
|
P2
|
SHT2
|
P2
|
GND
|
||
|
P3
|
SHT3
|
P3
|
VIDEO
|
||
|
P4
|
AES/ES
|
P4
|
GND
|
||
|
P5
|
AGC
|
P5
|
Y OUT
|
||
|
P6
|
GAMMA
|
P6
|
C OUT
|
||
|
P7
|
BLC
|
P7
|
GND
|
||
|
P8
|
ATW/AWC
|
|
|||
|
P9
|
MIRROR
|
||||
|
P10
|
GND
|
||||
